Startup guide for vSphere Automation SDK for REST API



VMware introduced a new API service in vSphere 6.5 version which is known as vSphere Automation API. This service allows us to introduce several new SDKs for JAVA, Perl, Ruby, REST etc.  Today we will see how to setup the basic wizard to start using the API service in day to day life.


For more information about what was introduced with the vSphere Automation APIs visit Here

Documentation :

The documentation for this SDK version is pretty straight forward. We can browse to each level of API and see the sections of what the operations it performs. We can get the URL, JSON , XML representation for each and every operations in the document.


SDK tool kit:

You can download the SDK kit from VMware {code}

Tools required:

We will use Postman today so that we will be able to start working with the API quickly and build your knowledge of how it works before using API in your own application. Postman is a great application to design, build and test Rest APIs. Postman have clients available for Windows, Mac and Linux platforms.

We shall download Postman from link

First  we need to gain access to the vSphere Automation SDK for REST from VMware’s GitHub repository. Make sure to read through the README, noting that we’ll be able to view and use these resources, as well as contribute back to the following items:

  • vSphere Automation SDK for REST API Reference Documentation
  • Postman Samples
  • JavaScript Samples (we’ll cover these here, as part two)

The easiest method is now to either download or clone the repository.

Downloading can be done as follows:
  • Click on the green “Clone or Download” button and then click “Download ZIP”
  • Once downloaded, extract the zip file to the location of your choosing

At this point, you will now have a local copy of the repository

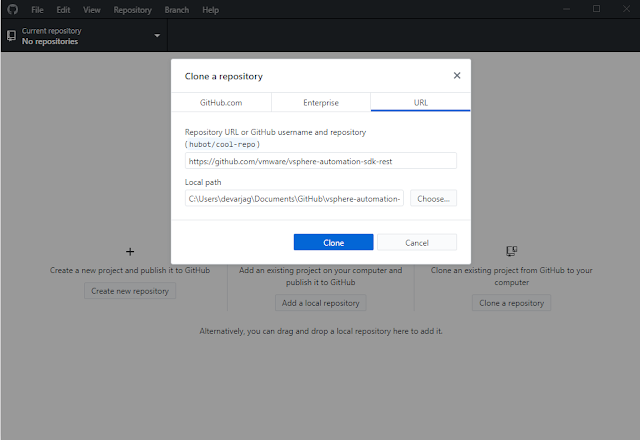

Cloning can also be done through the GitHub Desktop client as follows:

  • Click on the green “Clone or Download” button and then click “Open in Desktop”
  • Within the newly opened “Clone As” window, select the appropriate directory and name, then select “Clone”





So now we have the SDK ready in our local repository and let's get the Postman configured to be working. Open the Postman app and sign in to it



Welcome Page:






Initial Setup:


Click on the Import File and choose files button. Browse to the location where you unzipped the SDK file and then navigate to : Client\Samples\postman. Select the 2 JSON files from the directory.



  • vSphere-Automation-Rest-API-Resources.postman.json
  • vSphere-Automation-Rest-API-Samples.postman.json





Choose the files which we have downloaded from GitHub






We’ll now notice two new collections which are named quite similarly to the files imported. The vSphere Automation REST Resources collection is a number of requests, grouped in folders by their object level, that can be performed against a vSphere environment. The vSphere Automation REST Samples is a couple groups of requests which can be combined to perform a normal task. Some of the examples include ESXi host connection and disconnection, VM creation, and VM power actions.
Last part of setup comes down to configuring some environmental variables. As you begin browsing through the requests, you’ll start noticing some double curly brackets that may look like this: {{vc}} This is what’s known as an environmental variable within Postman, and vc will be used to refer to the vCenter Server. There’s only a couple environmental variables which need to be set in order to begin: vc, user, password. Those are fairly self-explanatory, so let’s set them up in Postman.
To begin creating environmental variables, head towards the gear icon in the top right hand side and click on it. This is where environments are managed. Add a new environment by clicking on the orange “Add” button. Give the environment a name, then enter in those three items mentioned above and valid values for your environment. Click the orange “Add” button again to complete the creation, and click on the “X” to the right of “Manage Environments” to close the window.








Import the Certificates if you are using Customer signed certificates



Disable SSL verification if you do not use CA signed certs

Go to File > Settings > SSL Certificate Verification ( set to OFF)




Once done, try connecting to the vCenter. Expand the vSphere Automation REST Resources collection, expand the Authentication folder, and select Login.







We can gather a bit of information about the request at this point. We’ll be doing a Post method to the vCenter’s URL of /rest/com/cmware/cis/session with a basic authentication type and sourcing the username and password from our environmental variables. Before making the request, make sure to select the environment that was just created by selecting it via dropdown box next to the gear icon on the top right hand side.


Play around with the Environment:



We’re now authenticated to the vCenter’s API endpoint, so we can start exploring some other areas within the vSphere Automation REST Resources section. Let’s do some environmental discovery while we’re still exploring the SDK.
To get a list of the hosts available by this vCenter’s API endpoint, expand the Hosts folder and select List. Here we can see the request uses a Get method to the vCenter’s URL of /rest/vcenter/host. Clicking “Send” will give us a list of the hosts available as well as some basic information such as the host ID, name, connection state, and power state.



To get a list of the VMs available by this vCenter’s API endpoint, expand the VM folder and select List. At this point, hopefully you can figure out what the request is going to look like and a rough guess at what information is going to be pulled back.






We’ve got the basics down now, how about getting into some additional detail on a VM. In the VM folder, select the Details. In the URL, we’re just appending the VM’s ID to the end of the prior call. The example includes ‘vm-1021’ which can be modified to a VM ID as identified in the prior request. Clicking on “Send” retrieves a ton of information back about the configuration settings for that VM including CPU information, NICs, boot configuration, and so forth.





Likewise you can go further and get the details of each object using the POST commands. You can also create a VMs using the "Create VM" function right over the list.

Make yourself comfortable with the basics and I see you soon with the next steps in next thread.  :-)













Tuesday, 15 May 2018

vSphere 6.7 released !


As we are aware VMware comes up with a new release of vsphere every year. and VMware didn't fail to excite us with the new features and innovations this time too!

In this blog post lets have a sneak peak about the new features which are bundled with vSphere 6.7

vSphere 6.7 is the efficient and secure platform for hybrid clouds, fueling digital transformation by delivering simple and efficient management at scale, comprehensive built-in security, a universal application platform, and seamless hybrid cloud experience.

vSphere 6.7 delivers key capabilities to enable IT organizations address the following notable trends that are putting new demands on their IT infrastructure:


  • Explosive growth in quantity and variety of applications, from business critical apps to new intelligent workloads.
  • Rapid growth of hybrid cloud environments and use cases.
  • On-premises data centers growing and expanding globally, including at the Edge.
  • Security of infrastructure and applications attaining paramount importance.



vCenter Server 6.7 – Last Windows Server Version
This should come as no surprise to anyone keeping up with VMware over the past couple of releases. VMware for last couple of years have focused more on appliance version of VC and have worked hard to bring up the enhancements. The 6.5 vcenter has VCHA feature that exists only on appliance version  and much more options were provided only on VCSA. So with that said, this is the last version which is going to be launched for windows version. Its time for the migration !

HTML5 Clarity of vCenter Server 6.7
Another obvious continued deprecation with this release of vCenter Server is the Flash (Flex) client is also getting much closer to being totally replaced. VMware had worked hard to get the full HTML5 support on the web client for better performance, clarity and rigid interface.

vCenter Server 6.7 New CLI Tools
vSphere 6.7 delivers an exceptional experience for the user with an enhanced vCenter Server Appliance (vCSA). It introduces several new APIs that improve the efficiency and experience to deploy vCenter, to deploy multiple vCenters based on a template, to make management of vCenter Server Appliance significantly easier, as well as for backup and restore. It also significantly simplifies the vCenter Server topology through vCenter with embedded platform services controller in enhanced linked mode, enabling customers to link multiple vCenters and have seamless visibility across the environment without the need for an external platform services controller or load balancers.

Moreover, with vSphere 6.7 vCSA delivers phenomenal performance improvements (all metrics compared at cluster scale limits, versus vSphere 6.5):


  • 2X faster performance in vCenter operations per second
  • 3X reduction in memory usage
  • 3X faster DRS-related operations (e.g. power-on virtual machine)


These performance improvements ensure a blazing fast experience for vSphere users, and deliver significant value, as well as time and cost savings in a variety of use cases, such as VDI, Scale-out apps, Big Data, HPC, DevOps, distributed cloud native apps, etc.

vSphere 6.7 ESXi Server Enhancements


  • New Quick Boot feature that allows simply restarting the hypervisor services rather than an entire physical server. This drastically reduces maintenance windows related to upgrades and patching
  • Support for 4K Native Drives – Finally with the vSphere 6.7 release, VMware now officially supports 4K Native drives. This also includes VMware vSAN support for 4K Native drives
  • New Offloading capabilities with SANs and VAAI that allow offloading certain operations off to capable SAN hardware
  • VVOLs now support Windows Failover Cluster and meet the iSCSI-3 reservation requirement that is needed for Windows Failover Clustering to utilize the virtual volumes for shared storage. VMware vSAN also provides the ISCSI-3 reservations with vSphere 6.7 and also support Windows Failover Clustering Services
  • Persistent Memory support – Using supported servers, customers can take advantage of ultra high-speed storage with cheaper DRAM prices
  • New Security certifications – This release of vSphere 6.7 has passed the FIPS 140-2 validation program and is currently the only HCI vendor officially certified with this rating



I would recommend you to try hands on lab

Happy reading !
